DMX engine
44 Hz, locked
One frame every 22.7 ms, on a thread of its own, whatever the screen is doing.
0.100 ms
p99 jitter at 44.015 Hz
Source: CLAUDE.md §3 — measured on the target machine
v2.1.6-alpha.1 · Windows 10 / 11 x64
Light the room.
Map the wall.
One desk.
A lighting console, a projection mapper and a media server — one engine, one desk.
The stage on this page is not an animation. It is 75 seconds of DMX from Academy Lesson 7, as it left the console — sACN at 44 Hz, 0 packets lost — drawn by your browser. Tap a head to read its channels.
loading recorded DMX…
- 44 HzDMX engine · p99 jitter 0.100 ms
- 0 Ballocated per engine frame
- 16universes proved on the wire
- 60 fpsvisualiser on display 2, 0 repeated refreshes
- 0.100 msp99 jitter at 44.015 Hz
- 0 lost15,416 sACN packets at 44.00 Hz
- 60.0 fps0 repeated refreshes
01 — Engine
An engine that keeps time, whatever the screen does.
The show runs on a 44 Hz thread of its own. The network, the visualiser and the interface each have theirs, and none can hold it back.
Threaded transport
The network never holds the show
The engine hands each frame to a triple buffer; a send thread puts it on the wire. A slow link skips frames — it never delays one.
0 lost
15,416 sACN packets at 44.00 Hz
Source: CHANGELOG 1.6.0-alpha.1 — Academy Lesson 7, read off the wire

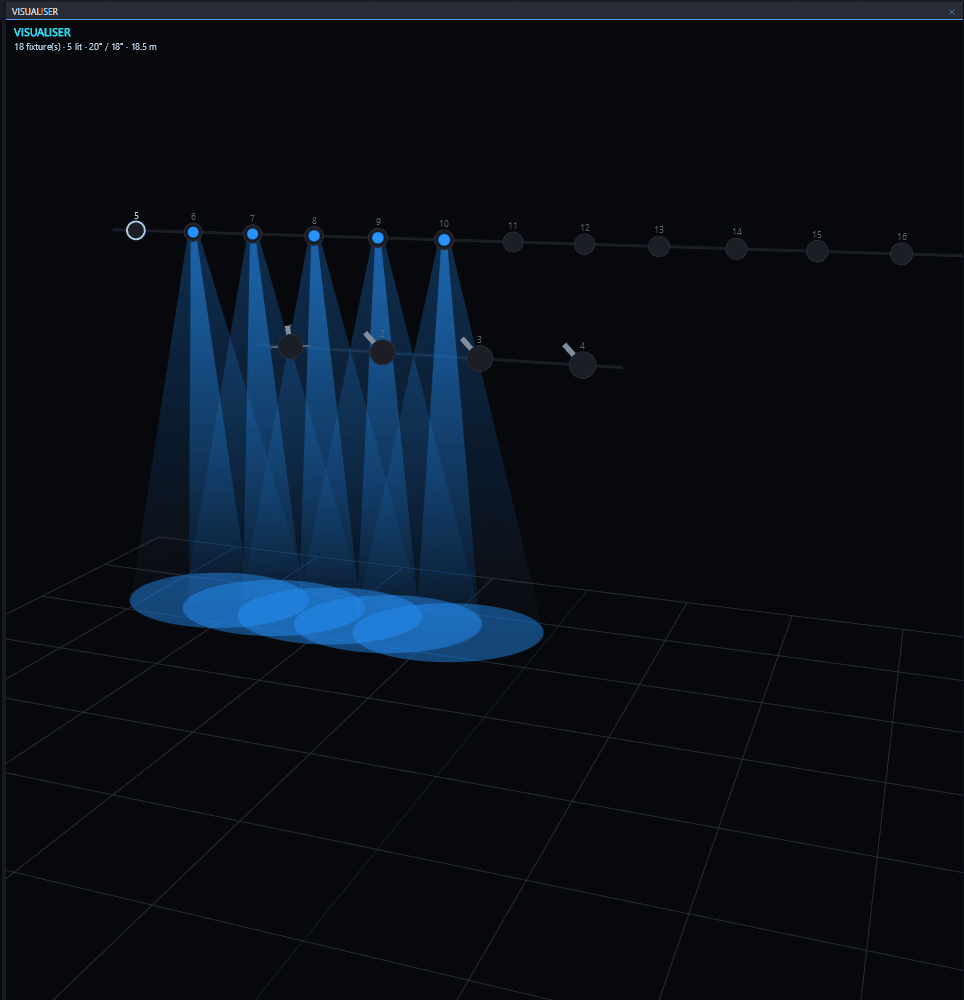

3D visualiser
Its own GPU presenter on display 2
A thread, a device and a swap chain of its own, drawing beams from the DMX the console sends.
60.0 fps
0 repeated refreshes
Source: CHANGELOG 1.0.0 — Phase 57, DXGI frame statistics
Zero allocation
No pause for garbage
The engine's loop allocates nothing, so the collector never stops a cue mid-fade. Tested on every build.
0 B
allocated per engine frame
Source: CLAUDE.md §3 — held and tested
02 — The console's own view
52 fixtures, drawn from the DMX the console sends.
The visualiser on display 2, recorded as it ran: a looping cue stack of fans, crossings and a sweep over the crowd — the same engine you saw above, at arena scale.

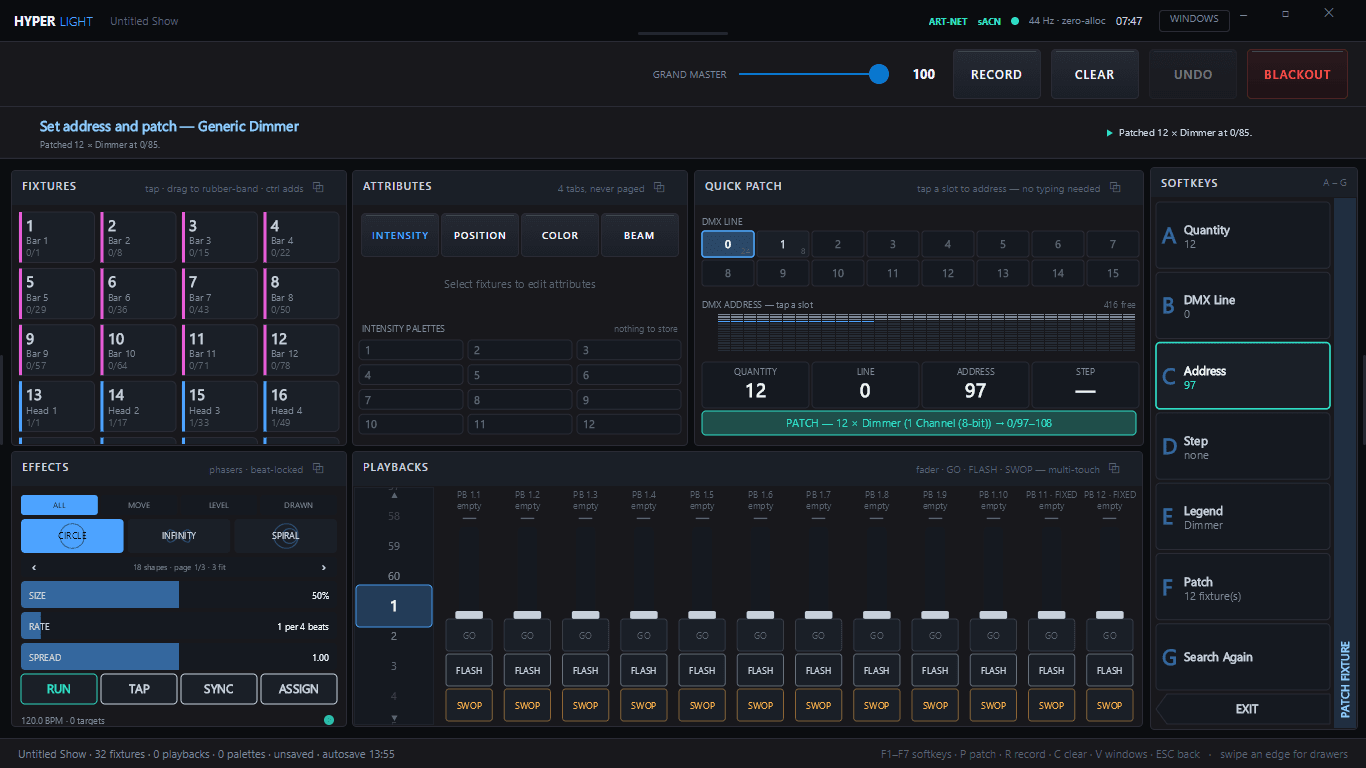

03 — Control surfaces
Four control surfaces, one engine underneath.
Every picture is a capture of the console; every figure was measured on the machine it is built on.
Effects that stay on the beat
Shapes, key-frame curves and a random wave, locked to the tempo and reaching every colour system on the rig.
44 Hzengine tick · 0 B per frame
measured · CLAUDE.md §3 — 44.015 Hz, p99 jitter 0.100 ms
- Beat-locked phasers: circle, infinity, spiral and 15 more shapes

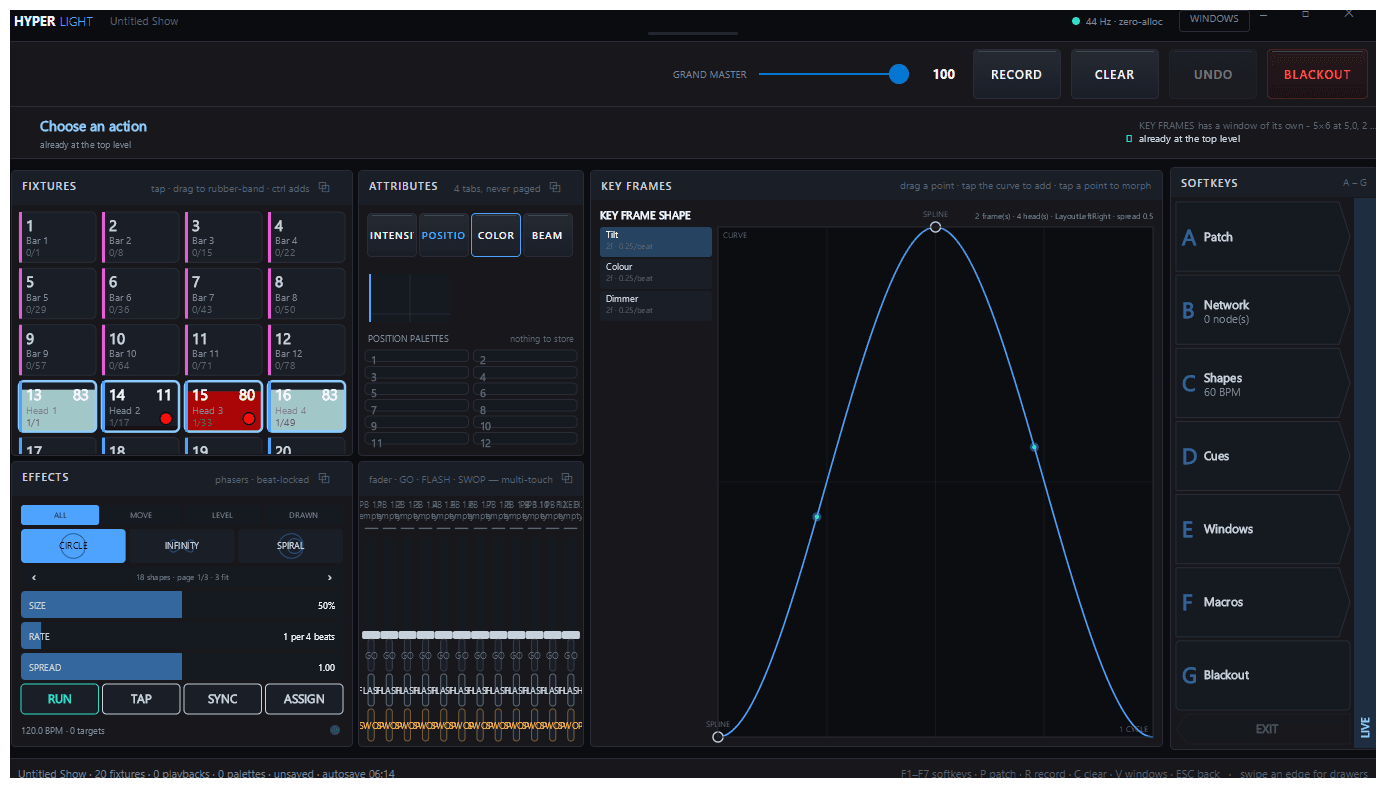

- Key-frame curves you drag point by point, per attribute
- Colour effects on RGB and CMY heads in one phase order
- Audio bands drive strobe, FX size and FX speed
04 — Academy
Learn it the way it is played.
Every lesson is recorded on the console itself, in English with Arabic subtitles, with a practice show to open on yours. 9 recorded so far.
- 01Console Mastery & 6-Universe WorkflowGetting StartedThe six-universe stageThe console and its drawers2:16
- 02Fixture patching and DMX layoutFixture & Laser PatchingFixture types and footprintsStart addresses and the universe2:30
- 03Chase creation and speed controlLive Stage Control & FX StudioRecording chase stepsStep time and fade time3:22
- 04Pan/tilt control and moving light position presetsFixture & Laser PatchingPan and tilt: ranges and 16 bitsFine control3:44
- 05Colour mixing, FX generators and advanced layoutsLive Stage Control & FX StudioColour mixing: swatches, the wheel, palettesFX generators: colour, intensity, movement4:50
- 06Advanced cue lists, timed triggers and live show executionLive Stage Control & FX StudioBuilding the listPer-attribute timing and LINK4:10
- 07Palettes, groups, layout building and live buskingLive Stage Control & FX StudioGroupsPosition, colour and beam palettes5:44
- 08Art-Net and sACNAdvanced NetworkingTwo protocols, one frameOnto the lighting network5:38
- 09Sixteen universes on the wireAdvanced NetworkingPlanning universes for a rigPatching across lines5:29
Lesson 09 · 5:29 · muted preview
Planning a rig across sixteen universes, what the network has to carry, and proving every byte arrives where the patch says.
05 — Start
Fourteen days with everything.
Every installation starts with a full evaluation — all universes, saving, every studio. The console is in private beta: ask for a build, and activate when you are ready with the machine code it shows you.
Offline first
Licences verify on the machine. A console in a rack with no network runs exactly as it does in the studio.
Output is sacred

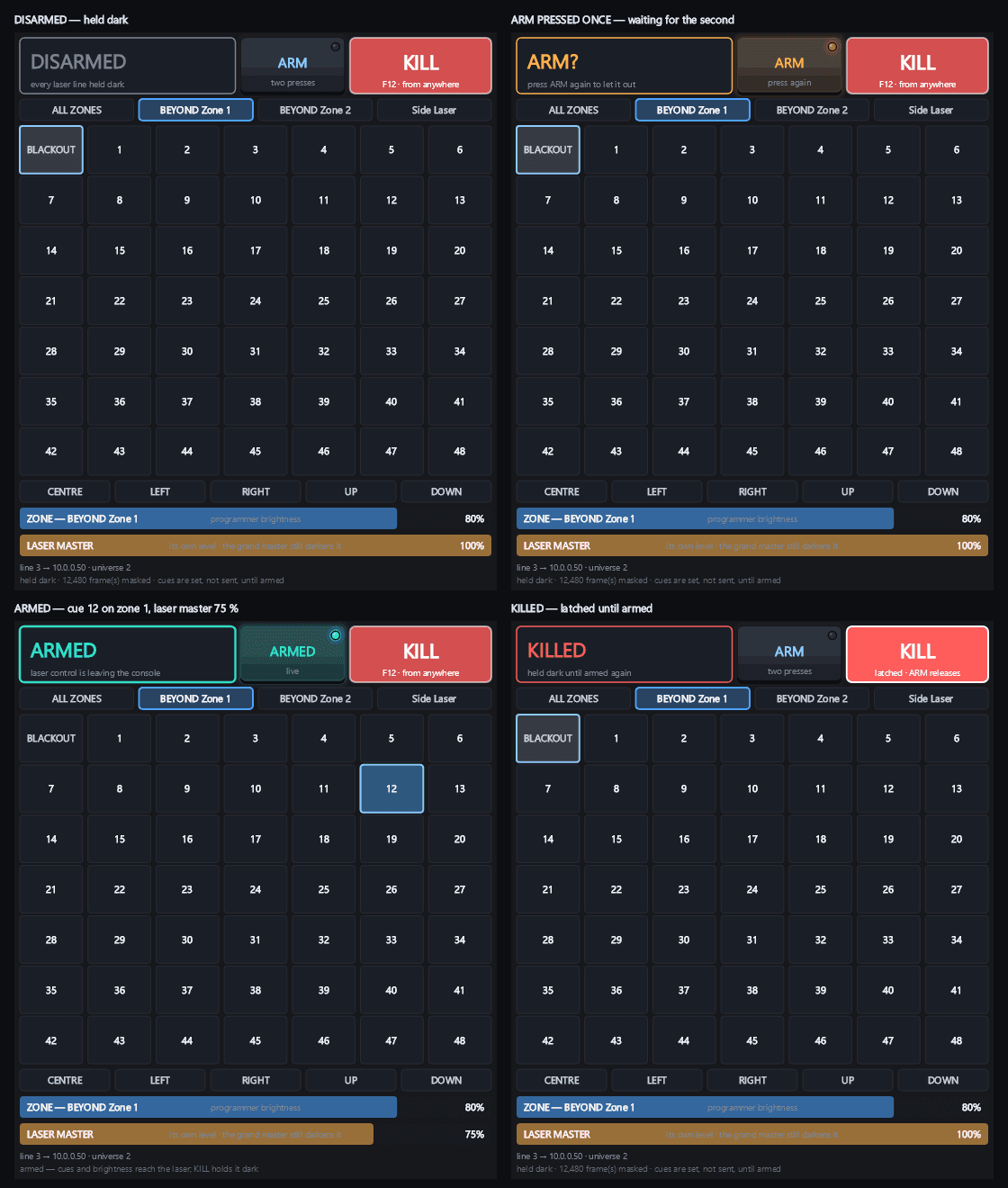

BLACKOUT and F12 reach the console from every window, and no licence check ever cuts running output.
Measured, not claimed
Every figure on this page comes from a recorded run. 4,074 automated tests guard them.
